Using Flower Player

Using Flower Player, you can simply integrate ad playback into your existing VOD playback setup. See About Flower Players to read more about Flower Players.

Workflow​

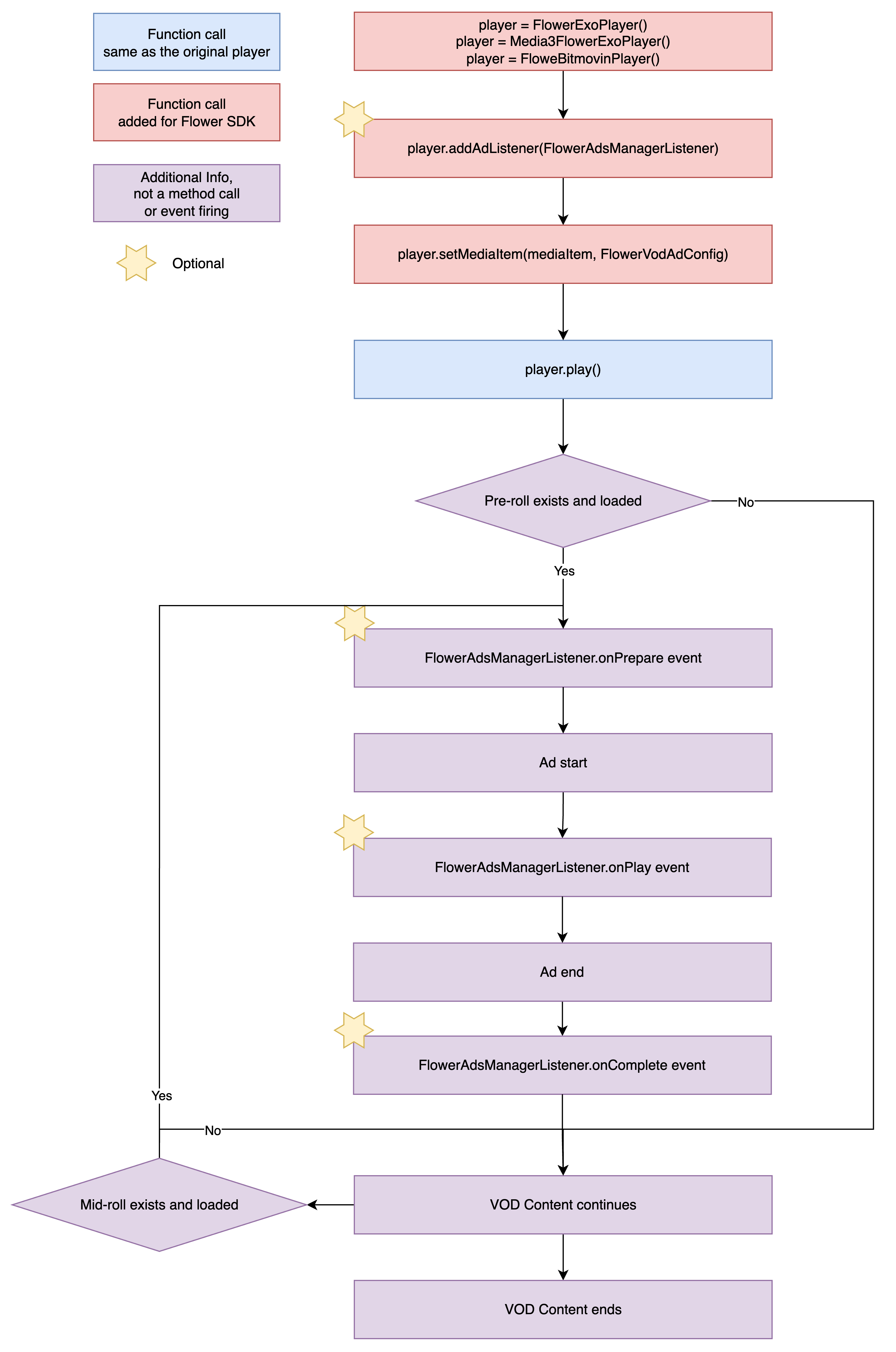

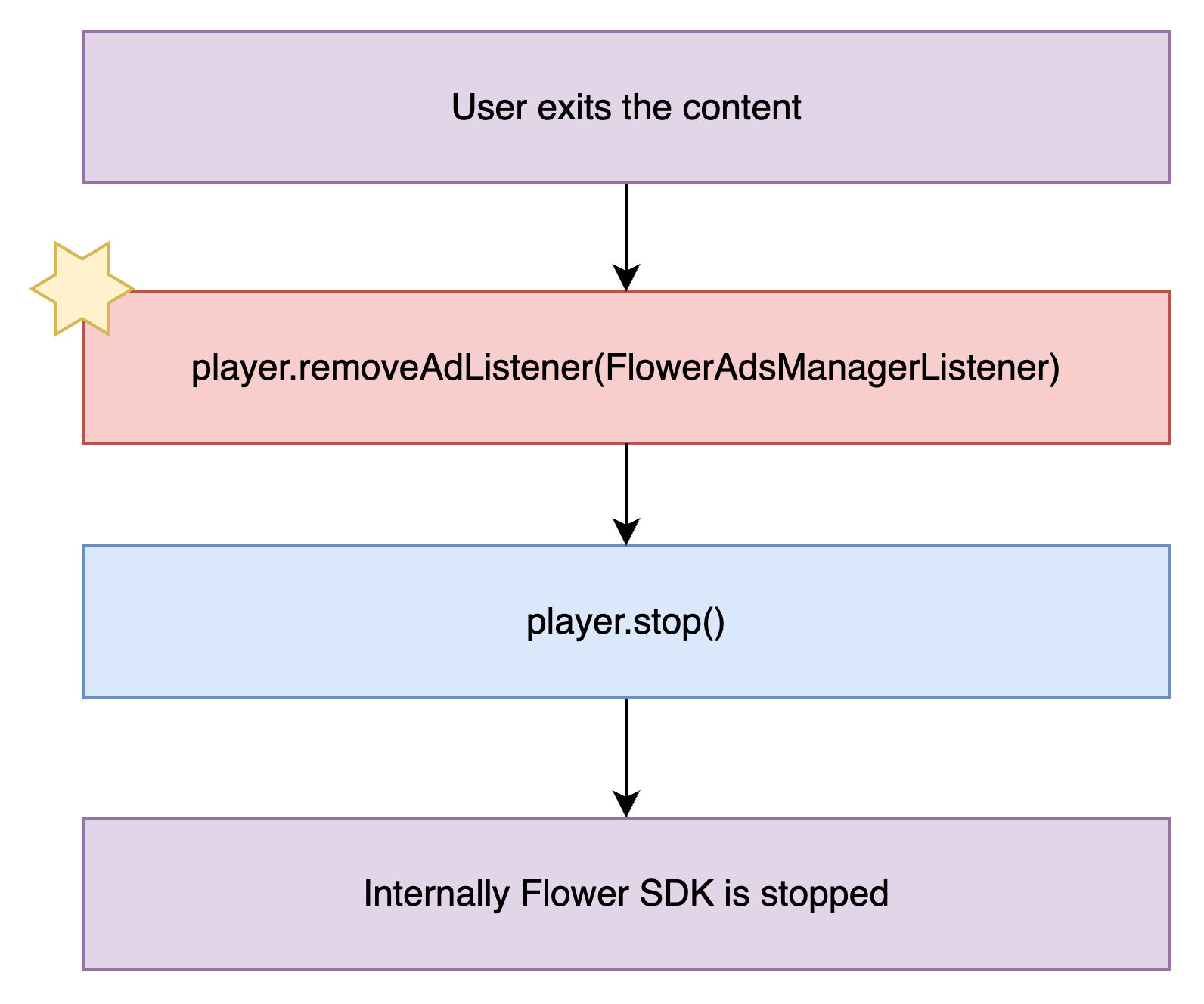

This diagram illustrates the ad insertion workflow in VOD using Flower Player.

FlowerVodAdConfig​

Class used to specify information required for ad insertion in VOD contents. For more information, see FlowerAdConfig.

Receiving Ad Events​

When inserting ads into VOD contents, UI control logic may be needed at ad playback start/end points. For this, Flower SDK provides a listener interface FlowerAdsManagerListener for receiving ad events, which can be implemented as follows:

val adsManagerListener = object : FlowerAdsManagerListener {
    override fun onPrepare(adDurationMs: Int) {
        // OPTIONAL GUIDE: Additional actions on ad prepare
        displayYourAdNotice()
    }

    override fun onPlay() {
        // OPTIONAL GUIDE: Additional actions on ad playback start
        displayYourAdIndicator()
    }

    override fun onCompleted() {
        // OPTIONAL GUIDE: Additional actions on ad playback end
        hideYourAdIndicator()
    }

    override fun onError(error: FlowerError?) {
        // TODO GUIDE: restart to play Linear TV on ad error
        releasePlayer()
        playLinearTv()
    }

    override fun onAdSkipped(reason: Int) {
        // OPTIONAL GUIDE: Additional actions on ad skip
        logger.info { "onAdSkipped: $reason" }
    }
}

// Register the listener to Flower Player
player.addAdListener(adsManagerListener)

Full Example​

The example shows an example to insert ads in VOD content. The example uses FlowerExoPlayer2.

class PlaybackActivity : Activity() {
    // TODO GUIDE: Replace your ExoPlayer with FlowerExoPlayer2 or FlowerMedia3ExoPlayer
    private lateinit var player: FlowerExoPlayer2
    private lateinit var playerView: SurfaceView

    // OPTIONAL GUIDE: Create FlowerAdsManagerListener instance
    private lateinit var flowerAdsManagerListener: FlowerAdsManagerListener

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_playback)

        playerView = findViewById(R.id.player_view)

        playLinearTv()
    }

    override fun onDestroy() {
        super.onDestroy()
        player.stop()
        player.removeAdListener(flowerAdsManagerListener)
        player.release()
    }

    private fun playLinearTv() {
        // TODO GUIDE: Create ExoPlayer using standard ExoPlayer.Builder
        val exoPlayer = ExoPlayer.Builder(this)
            .setLoadControl(
                DefaultLoadControl.Builder()
                    .setBufferDurationsMs(
                        DefaultLoadControl.DEFAULT_MIN_BUFFER_MS,
                        DefaultLoadControl.DEFAULT_MAX_BUFFER_MS,
                        DefaultLoadControl.DEFAULT_BUFFER_FOR_PLAYBACK_MS,
                        DefaultLoadControl.DEFAULT_BUFFER_FOR_PLAYBACK_AFTER_REBUFFER_MS
                    )
                    .build()
            )
            .build()

        // TODO GUIDE: Wrap your ExoPlayer with FlowerExoPlayer2
        player = FlowerExoPlayer2(exoPlayer, this)

        player.setVideoSurfaceView(playerView)

        val videoUrl = "https://video_url"

        // TODO GUIDE: Configure linear tv ad
        // arg0: adTagUrl, Ad tag URL issued by Flower backend system
        //       You must file a request to Anypoint Media to receive a adTagUrl.
        // arg1: contentId, Unique content ID
        //       Must be registered in Flower backend system.
        //       You must file a request to Anypoint Media to receive a adTagUrl.
        // arg2: contentDuration, Duration of VOD content in milliseconds
        // arg3: requestTimeout, Minimum timeout duration in milliseconds for requesting VOD ads
        //       Default is 5000.
        // arg4: minPrepareDuration, Minimum wait time in milliseconds from the onPrepare event until ad playback starts
        //       Default is 5000.
        // arg5: extraParams, (Optional) values you can provide for targeting
        // arg6: adTagHeaders, (Optional) values included in headers for ad request
        val adConfig = FlowerVodAdConfig(
            adTagUrl = "https://ad_request",
            contentId = "1",
            contentDuration = 3_600_000L,
            requestTimeout = 5_000L,
            minPrepareDuration = 5_000L,
            extraParams = mapOf(
                "title" to "My Summer Vacation",
                "genre" to "horror",
                "contentRating" to "PG-13"
            ),
            adTagHeaders = mapOf(
                "custom-ad-header" to "custom-ad-header-value"
            ),
        )

        // OPTIONAL GUIDE: Implement FlowerAdsManagerListener to receive ad events
        class FlowerAdsManagerListenerImpl : FlowerAdsManagerListener {
            override fun onPrepare(adDurationMs: Int) {
                // OPTIONAL GUIDE: Implement custom actions for when the ad playback is prepared
            }
            override fun onPlay() {
                // OPTIONAL GUIDE: Implement custom actions for when the ad playback starts
            }
            override fun onCompleted() {
                // OPTIONAL GUIDE: Implement custom actions for when the ad playback ends
            }
            override fun onError(error: FlowerError?) {
                // OPTIONAL GUIDE: Implement custom actions for when the error occurs in Flower SDK
            }
            override fun onAdSkipped(reason: Int) {
                // OPTIONAL GUIDE: Implement custom actions for when the ad playback is skipped
            }
        }
        // OPTIONAL GUIDE: Register FlowerAdsManagerListener to receive ad events
        flowerAdsManagerListener = FlowerAdsManagerListenerImpl()
        player.addAdListener(flowerAdsManagerListener)

        // TODO GUIDE: FlowerAdConfig should be delivered in setMediaItem() method call
        val mediaItem = MediaItem.fromUri(videoUrl)
        player.setMediaItem(mediaItem, adConfig)
        player.prepare()
        player.play()
    }
}
